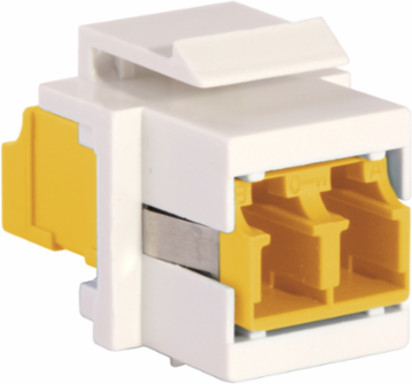

Hubbell Premise Wiring SFFLCSYG Fiber Optic Connectors Snap-Fit LC Duplex Ceramic 0.58" x 0.76" Yellow Gray
- MPN: SFFLCSYG
- UPC: 662620308081
- PPN: HBL-SFFLCSYG
- UNSPSC: 43223310
CAD
$38.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, Flush, LC-Duplex, Zircon Sleeves, Yellow, Gray Housing.
Features
- Snap Fit
- Gray Housing
- Flush
- LC Duplex
- Yellow Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 0.600 in
- Size
- .58" X .76"
- Color
- Yellow
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
- Temperature Rating
- 0C to 70C
- Mounting Type
- Flush
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- BOX SIZE
- 4.400x3.500x6.400 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620308081
- Case Weight
- 65.000 lb.
- Lowest Level UOM
- Each
Color - HousingGray
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
ApplicationData Outlet
Fiber Size125 Micron
MountingFlush
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleLC Duplex
Description - InvoiceFIBER, SNAP-FIT,FLSH,LC DUPLX,YL,ZIRC,GY
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Each - Pack DescriptionEach
NAICS Code3342104145
Certifications
- EU RoHS Indicator
- Yes
