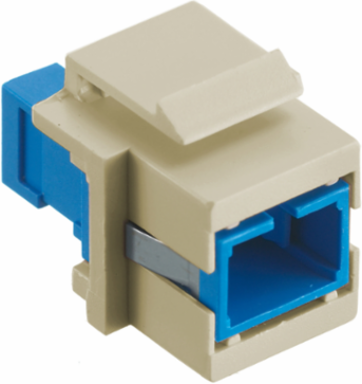

Hubbell Premise Wiring SFFSCSAQEI Fiber Optic Connectors SC Simplex Snap-Fit Aqua Ceramic 0.75 dB Loss
Hubbell Premise Wiring SFFSCSAQEI Fiber Optic Connectors SC Simplex Snap-Fit Aqua Ceramic 0.75 dB Loss
- MPN: SFFSCSAQEI
- UPC: 662620241111
- PPN: HBL-SFFSCSAQEI
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.48/ EA
Description
Fiber Optic Connectors, Snap-Fit, Flush, SC Simplex, Zircon Sleeves, Aqua, Electric Housing.
Features
- Snap Fit
- Ivory Housing
- Flush
- SC Simplex
- Aqua Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Aqua
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Temperature Rating
- 0C to 70C
- Mounting Type
- Flush
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- BOX SIZE
- 4.437x2.000x6.550 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620241111
- Each - Pack Description
- Each
Color - HousingIvory
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Fiber Size125 Micron
MountingFlush
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleSC Simplex
Description - InvoiceFIBER, SNAP-FIT,FLSH,SC SMPLX,AQ,ZIRC,EI
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
