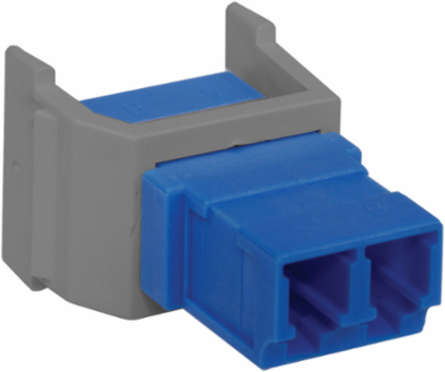

Hubbell Premise Wiring SFLCSAQG Fiber Optic Connectors LC Duplex Snap-Fit Aqua Gray Housing 0.75 dB Loss
- MPN: SFLCSAQG
- UPC: 662620303833
- PPN: HBL-SFLCSAQG
- UNSPSC: 43223310
CAD
$38.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, LC Duplex, Zircon Sleeves, Aqua, Gray Housing.
Features
- Snap Fit
- Gray Housing
- Standard
- LC Duplex
- Aqua Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Aqua
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
- Temperature Rating
- 0C to 70C
- Mounting Type
- Standard
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFLCAQG
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Each - Pack Description
- Each
- NAICS Code
- 3342104145
Color - HousingGray
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
ApplicationData Outlet
Fiber Size125 Micron
MountingStandard
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleLC Duplex
Description - InvoiceFIBER, SNAP-FIT,LC DUPLX,AQ,ZIRC,GY
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialCeramic
BOX SIZE7.900x9.900x6.100 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620303833
Case Weight32.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
