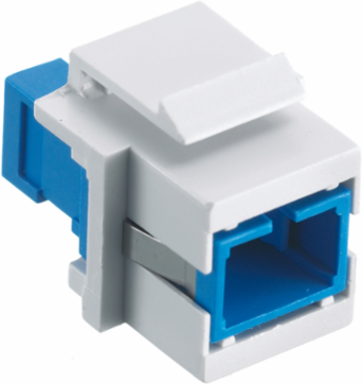

Hubbell Premise Wiring SFFSCSBEW Fiber Optic Connectors SC Simplex, 0.58" x 0.76", Beige/White Housing
- MPN: SFFSCSBEW
- UPC: 662620241371
- PPN: HBL-SFFSCSBEW
- UNSPSC: 43223310
CAD
$22.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, Flush, SC Simplex, Zircon Sleeves, Beige, White Housing.
Features
- Snap Fit
- White Housing
- Flush
- SC Simplex
- Beige Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Beige
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Temperature Rating
- 0C to 70C
- Connectivity
- Receptacle
- Style
- SC Simplex
- Description - Invoice
- FIBER, SNAP-FIT,FLSH,SC SMPLX,BE,ZIRC,WH
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Lowest Level UOM
- Each
Color - HousingWhite
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Fiber Size125 Micron
MountingFlush
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
General Literature Asset 1 Display TextIntegrating AV Systems
Mounting TypeFlush
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeHPWALL2
MaterialCeramic
BOX SIZE4.437x2.000x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620241371
Each - Pack DescriptionEach
NAICS Code3342104145
Certifications
- EU RoHS Indicator
- No
