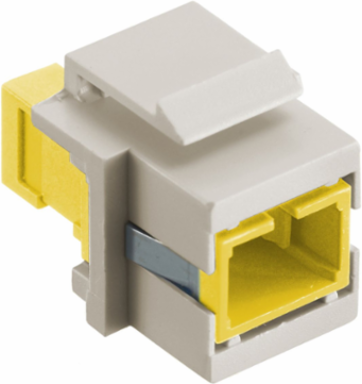

Hubbell Premise Wiring SFFSCSYOW Fiber Optic Connectors SC Simplex, 0.58" x 0.76", Flush, Yellow Adapter
- MPN: SFFSCSYOW
- UPC: 662620306193
- PPN: HBL-SFFSCSYOW
- UNSPSC: 43223310
CAD
$23.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit,Flush, SC Simplex, Zircon Sleeves, Yellow, Office White Housing.
Features
- Snap Fit
- Office White Housing
- Flush
- SC Simplex
- Yellow Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 1.000 in
- Size
- .58" X .76"
- Color
- Yellow
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Receptacle
- Style
- SC Simplex
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFFSCSYLA;SFFSCYOW;SFFSCSYLOW;SFFSCYLOW
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 32.500 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Color - HousingOffice White
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Environmental ConditionsIndoor
MountingFlush
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
Temperature Rating0C to 70C
Mounting TypeFlush
Class CodeA68
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeA68A690
MaterialCeramic
BOX SIZE4.437x3.500x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00662620306193
Case - Total Units650 EA
Pallet Height41.900 in
Pallet Weight332.500 lb.
NAICS Code3342104145
