Hubbell Premise Wiring SFLCSORW Fiber Optic Connectors LC Duplex Orange Zircon Sleeves 1.700 Inch Width
Hubbell Premise Wiring SFLCSORW Fiber Optic Connectors LC Duplex Orange Zircon Sleeves 1.700 Inch Width
- MPN: SFLCSORW
- UPC: 662620305233
- PPN: HBL-SFLCSORW
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$38.08/ EA
Description

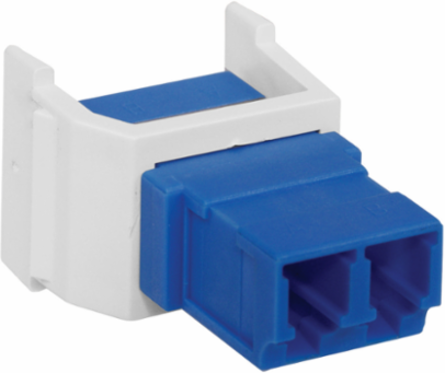

Fiber Optic Connectors, Snap-Fit, LC Duplex, Zircon Sleeves, Orange, White Housing.
Features
- Snap Fit
- White Housing
- Standard
- LC Duplex
- Orange Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Orange
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
- Temperature Rating
- 0C to 70C
- Mounting Type
- Standard
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFLCORW
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Each - Pack Description
- Each
Color - HousingWhite
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
ApplicationData Outlet
Fiber Size125 Micron
MountingStandard
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleLC Duplex
Description - InvoiceFIBER, SNAP-FIT,LC DUPLX,OR,ZIRC,WH
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialCeramic
BOX SIZE4.437x2.000x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620305233
Case Weight32.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
