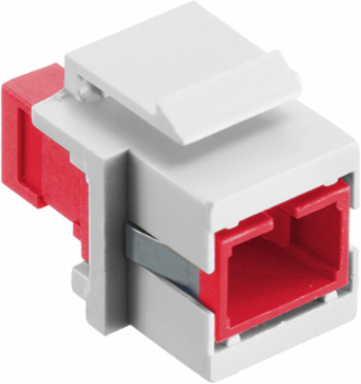

Hubbell Premise Wiring SFFSCSRW Fiber Optic Connectors, SC Simplex, Flush Mount, Zircon Sleeves, 1.700 Inch Width
- MPN: SFFSCSRW
- UPC: 662620306063
- PPN: HBL-SFFSCSRW
- UNSPSC: 43223310
CAD
$23.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit,Flush, SC Simplex, Zircon Sleeves, Red, White Housing.
Features
- Snap Fit
- White Housing
- Flush
- SC Simplex
- Red Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Red
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- General Literature Asset 1 Display Text
- Integrating AV Systems
- Mounting Type
- Flush
- Class Code
- A68
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Sub Class Code
- A68A690
- Material
- Ceramic
- BOX SIZE
- 4.437x2.000x6.550 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620306063
- Case Weight
- 32.500 lb.
Color - HousingWhite
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Environmental ConditionsIndoor
MountingFlush
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
Temperature Rating0C to 70C
ConnectivityReceptacle
StyleSC Simplex
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSFFSCRW;SFFSCSRDW
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
NAICS Code3342104145
