Hubbell Premise Wiring OCSPLCD12SM Fiber Splice Cassette, 12 Fibers, Blue LC Duplex Adapters, Zirconia Ceramic, SM
- MPN: OCSPLCD12SM
- UPC: 662620377117
- PPN: HBL-OCSPLCD12SM
- UNSPSC: 43223310
CAD
$963.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

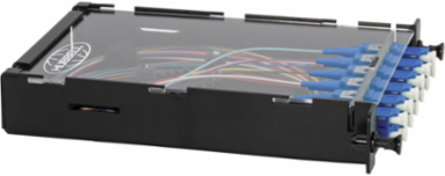

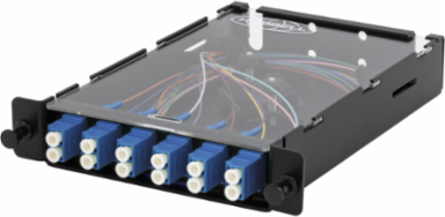

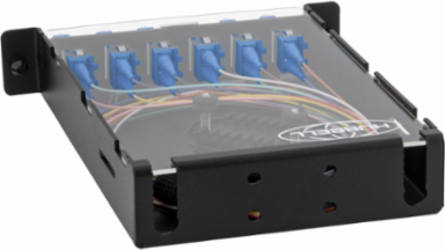

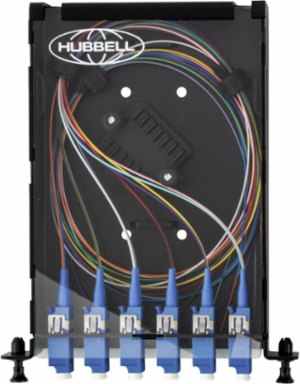

Fiber Splice Cassette with Adapter Panel and Pigtails Included, 12 Fibers, Blue LC Duplex Adapters with Zirconia Ceramic Sleeves, Singlemode Fiber.
Features
- Patch and splice LGX fiber cassette
- Adapters, pigtails, and splice fixture included
- All metal construction
- Assembled in USA
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 6.300 in |
| Application | Fusion Splice |
| Coupling Type | Push Pins |
| Standard | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS |
| Type | Splice Cassette |
| Protection | Indoor |
| Class Code | A68 |
| Harmonization Code | 8536700000 |
| Sub Class Code | A68A690 |
| Material | Steel |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620377117 |
| Pallet Height | 48.500 in |
| Pallet Weight | 217.750 lb. |
| Description - Slang | Fiber, Cassette, Splice, LC, Duplex, Singlemode |
|---|---|
| Industry Standard(s) | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS |
| Color | Blue |
| Special Features | Standard Product |
| Sub Brand | FIBERHUBB |
| Number Of Fibers | 12 |
| Style | LC |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Series | FiberHUBB™ |
| BOX SIZE | 8.700x14.200x12.800 (in) |
| Case Weight | 3.950 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
