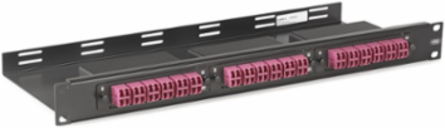

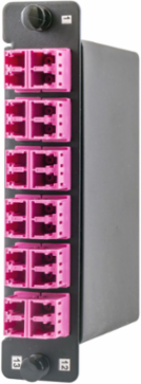

Hubbell Premise Wiring OCLCD50G4VI Fiber Optic Cassette Adapter Panel, LC Duplex to 2 MPO, OM4 24 Fiber

MPN: OCLCD50G4VI
UPC: 662620606637
PPN: HBL-OCLCD50G4VI
UNSPSC: 43223310

$1791.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fiber Optic, Cassette Adapter Panel, LC Duplexto 2 MPO, OM4, 24 FiberType A, Erika Violet.

Features

Compact Universal Design
Ten Gigabit Ethernet Assurance
Quick and Easy Plug-n-Play Installation
Standard Product

Specifications

Key Specifications

Country of Origin	United States
Industry Standard(s)	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Application	Interconnect
Environmental Conditions	Indoor
Fiber Type	OM4
Repeatability	0.1 dB
Service Life	500 matings
Standard	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Temperature Rating	0C to 70C
General Literature Asset 2 Display Text	FCR Series Premium Rack Mount Solution
Display Size	5.1" X 1.1"
Class Code	A68
Harmonization Code	8536700000
Sub Class Code	A68A690
Material	Ceramic
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620606637
NAICS Code	3342104145

Width	5.400 in
Performance	Optical - Total insertion loss - Less than 1.5dB (test data included)
Color	Violet
Fiber Size	250 Micron
Insertion Loss	0.75 dB Max
Return Loss	55
Special Features	Standard Product
Sub Brand	OptiChannel
General Literature Asset 1 Display Text	FCR-X Series Premium Rack Mount Solution
Connectivity	Cassette
Style	LC Duplex 24F
Freight Class Code	06111002
Image Actual Or Representative	A
Material - Mounting Hardware	Snap-In
Polarity	Type A
BOX SIZE	2.300x5.800x5.400 (in)
Carton - Total Units	25 EA
