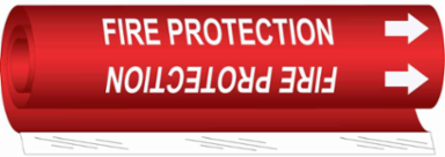

Brady 5688-O FIRE PROTECTION Pipe Marker, 8" H x 5" W, Fits Pipes 0.5" Dia. Thru 1.375" Dia.
Brady 5688-O FIRE PROTECTION Pipe Marker, 8" H x 5" W, Fits Pipes 0.5" Dia. Thru 1.375" Dia.
- MPN: 5688-O
- UPC: 754473564537
- PPN: BRD-5688-O
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.46/ EA
Description
B-689 Pipemarkers from Brady® are coiled printed plastic sheets with sealed color graphics
Features
- Designed for use on rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Style O wrap-around pipe markers fit pipes with outside diameter of 1/2 in. to 1-3/8 in.
- Resistant to UV light exposure, high humidity, high temperatures, abrasion, chemical reagents and physical agitation
- Excellent chemical resistance
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Curved; Rough
- Language
- English
- Pipe Marker Mounting Style
- Wrap Around
- Pre-Printed Areas on Label
- Pipe Contents & Pictograms
- Printer and Label Applications
- Pipe Marker
- Brady Material Number
- B-689
- Label Properties
- Harsh Environment Labels
- Material
- Coiled Plastic
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; UV-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Dimensions
- 5 in H x 8 in W
- Dimensions 2
- 5 in H x 8 in W
- Height (mm/cm/m)
- 203.2 mm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 34.93 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 12.7 mm
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 5 in x 8 in
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 8 in
Arrow DirectionRight
ColorWhite on Red
Enables Industry ComplianceANSI A13.1-2007
Pictogram DescriptionDirectional Arrow Symbol
Pipe Marker StyleO
Primary Noun, Basic FunctionPipe Marker
Text LegendFIRE PROTECTION
Indoor or Outdoor UseOutdoor Use
LaminatedPolyester Overlaminate
Material PropertiesSelf-laminating
SAP B-NumberB-689
Character Height (in/ft/yd)0.5 in
Dimensions (Metric)203.2 mm H
Height (in/ft/yd)5 in
Maximum Outside Pipe Diameter (in/ft/yd)1.375 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)0.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 0.5" Dia. Thru 1.375in Dia.
SizeO
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)127 mm
