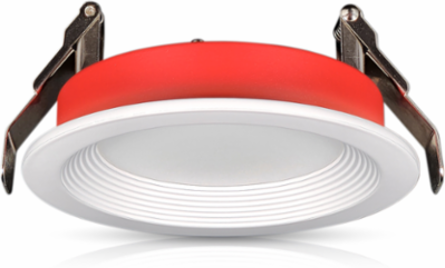

Leviton FBR40-S1W Fire-Rated Baffle Slim Downlight with Selectable CCT, 4-inch Round Aperture

MPN: FBR40-S1W
UPC: 078477028032
PPN: LEV-FBR40-S1W

$40.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Leviton's 4-inch Two-hour Fire-Rated Slim Downlight complies with UL 263, ASTM E119, and CAN/ULC S101. Installation is simple with easy mount steel clips that create a secure fit in the ceiling. Edge-lit optical system with diffuse polycarbonate lens produces uniform light distribution making it suitable for any application. Ideal for new construction and remodel applications, no need for recessed can or j-box. Select from five (5) color temperatures: 2700K (Warm White), 3000K (Soft White), 3500K (Neutral White), 4000K (Cool White), or 5000K (Daylight) with a simple switch. Direct mount design provides 1000 lumens of light output; pair it with one of many Leviton compatible dimmers for the desired light level needed for any space: SureSlide: 6672, 6674N, 66741, 66DF IllumaTech: IPL06, IPE04 Decora Slide with Lever Edge: ESL01 Decora Slide: DSL01, DSE06, DSM10 Decora Digital: DDM06, DDE06, DDL06-1, DDL06-B Decora Smart Wi-Fi: D36HD, D26HD, D2ELV, D2MSD Decora Smart Z-Wave: ZW6HD Decora Evolve: VM2D3, VMDD3 Toggle Slide: TSL01, TSM10 Trimatron Rotary: RDL06, RNL06

Features

4-inch Round Aperture delivers 1000 Lumens at 12W

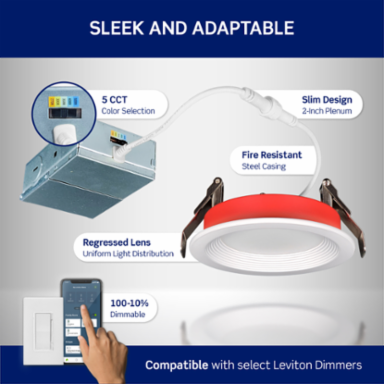

Regressed Lens with Baffle for less glare and improved visual comfort
Field selectable Color Temperature (2700K to 5000K)
Light Engine consists of 90+ CRI LEDs with R9>50 and color accuracy within 4 SDCM
IC Rated: Suitable for direct contact with insulation
Closed-cell Gasket included for use in Wet Location and Air-tight installations
120V Forward- or Reverse-Phase Dimming down to 10%
ENERGY STAR ® Certified
50,000 Hours @ 70% Lumen Maintenance
Five (5) year replacement after date of purchase

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Please Contact Customer Service

RoHS Compliant	False

Standards and Certifications

Duration Of Fire Protection	2-Hour Fire Rated, Complies with UL 263, CAN/ULC S101 and ASTM E119
Housing	Insulated Ceiling (IC) Rated
National Electric Code (NEC)	Suitable for use in clothes closets when installed in accordance with NEC® 410.16 (A)(1) (C)(3) spacing requirements
cETLus	Listed in accordance with UL 1598 and CSA C22.2 No. 250.0

Energy Rating	ENERGY STAR® Certified
Listing	Compliant with ASTM E283 (Air Leakage Rate 2.0 CFM or less)
Title 24 Compliant	Complies with Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements

Material Specifications

Box Material	Formed Galvanized Steel Remote Driver Enclosure / Junction Box
Lens	Frosted Polycarbonate

Finish	Matte White Trim and Red painted housing
Material	Die-cast Aluminum Trim and Carbon Steel Housing

Product Features

Color Consistency	4-Step MacAdam Ellipse binning to achieve Fixture to Fixture Color Consistency
Correlated Color Temperature	Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
Dimming Technology	120V Forward- or Reverse-Phase Dimming down to 10%
Input Voltage	120VAC, 60Hz
Lumen Output	1000 Lm
R9	High color performance with R9 value greater than 50
