Leviton FBR60-S1W Fire-Rated Baffle Slim Downlight with Selectable CCT, 6-inch Round Aperture
- MPN: FBR60-S1W
- UPC: 078477028049
- PPN: LEV-FBR60-S1W
CAD
$46.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

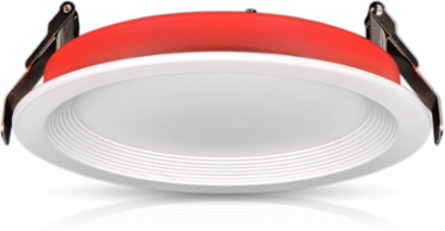

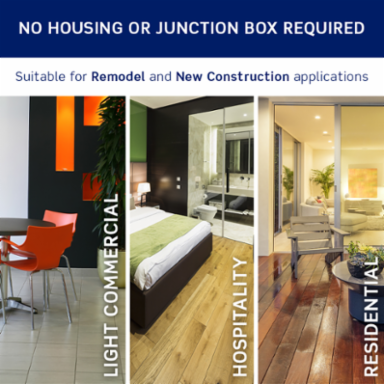

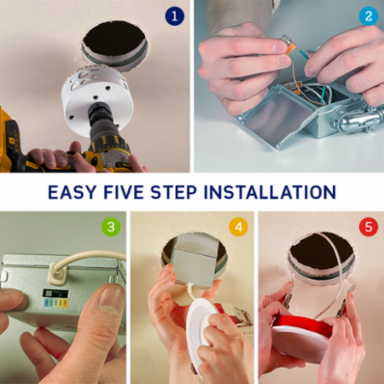

Leviton's 6-inch Two-hour Fire-Rated Slim Downlight complies with UL 263, ASTM E119, and CAN/ULC S101. Installation is simple with easy mount steel clips that create a secure fit in the ceiling. Edge-lit optical system with diffuse polycarbonate lens produces uniform light distribution making it suitable for any application. Ideal for new construction and remodel applications, no need for recessed can or j-box. Select from five (5) color temperatures: 2700K (Warm White), 3000K (Soft White), 3500K (Neutral White), 4000K (Cool White), or 5000K (Daylight) with a simple switch. Direct mount design provides 1350 lumens of light output; pair it with one of many Leviton compatible dimmers for the desired light level needed for any space: SureSlide: 6674N, 6674, 66DF IllumaTech: IPL06, IPE04 Decora Slide with Lever Edge: ESL01 Decora Slide: DSL06, DSE06, DSM10 Decora Digital: DDM06 Decora Smart Wi-Fi: D26HD, D2ELV, D2MSD Decora Smart Z-Wave: ZW6HD Decora Evolve: VM2D3, VMDD3 Toggle Slide: TSL06, TSM10 Trimatron Rotary: RDL06, RNL06
Features

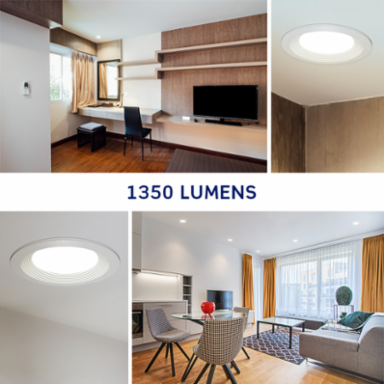

- 6-inch Round Aperture delivers 1350 Lumens at 15W

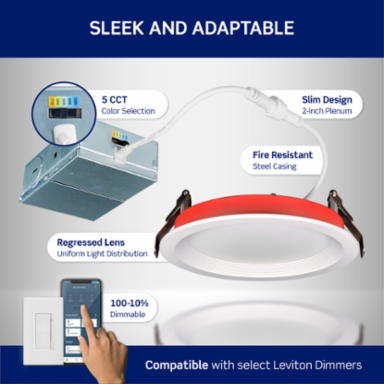

- Regressed Lens with Baffle for less glare and improved visual comfort

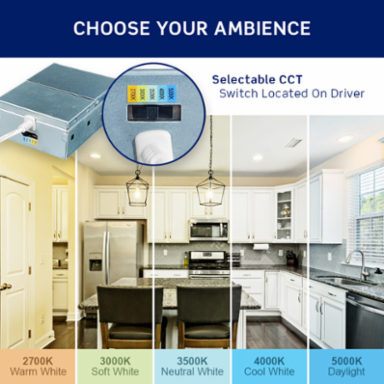

- Field selectable Color Temperature (2700K to 5000K)
- Light Engine consists of 90+ CRI LEDs with R9>50 and color accuracy within 4 SDCM
- IC Rated: Suitable for direct contact with insulation
- Closed-cell Gasket included for use in Wet Location and Air-tight installations
- 120V Forward- or Reverse-Phase Dimming down to 10%
- ENERGY STAR ® Certified
- 50,000 Hours @ 70% Lumen Maintenance
- Five (5) year replacement after date of purchase
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications

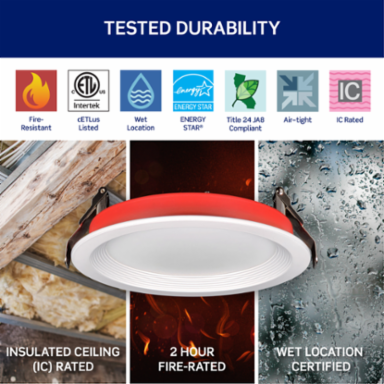

- Duration Of Fire Protection
- 2-Hour Fire Rated, Complies with UL 263, CAN/ULC S101 and ASTM E119
- Housing
- Insulated Ceiling (IC) Rated
- National Electric Code (NEC)
- Suitable for use in clothes closets when installed in accordance with NEC® 410.16 (A)(1) (C)(3) spacing requirements
- cETLus
- Listed in accordance with UL 1598 and CSA C22.2 No. 250.0
Energy RatingENERGY STAR® Certified
ListingCompliant with ASTM E283 (Air Leakage Rate 2.0 CFM or less)
Title 24 CompliantComplies with Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
Material Specifications
- Box Material
- Formed Galvanized Steel Remote Driver Enclosure / Junction Box
- Lens
- Frosted Polycarbonate
FinishMatte White Trim and Red painted housing
MaterialDie-cast Aluminum Trim and Carbon Steel Housing
Product Features
- Color Consistency
- 4-Step MacAdam Ellipse binning to achieve Fixture to Fixture Color Consistency
- Correlated Color Temperature
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- Dimming Technology
- 120V Forward- or Reverse-Phase Dimming down to 10%
- Input Voltage
- 120VAC, 60Hz
- Lumen Output
- 1350Lm
- R9
- High color performance with R9 value greater than 50
Color Rendering Index90+

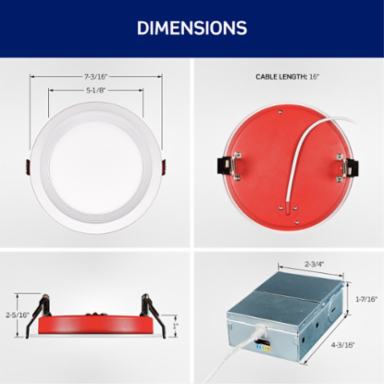

Cutout Size6-1/4-Inches
Input Power15W
LED Life (Hours)50,000 Hours @ 70% Lumen Maintenance
Product Aperture Size6-Inch Round
Warranty
- Warranty
- Five (5) year replacement after date of purchase
Environmental Specifications
- Listing
- Suitable for Wet Locations, Covered Ceiling
Operating Temperature-20°C (-4°F) to 40°C (104°F)
