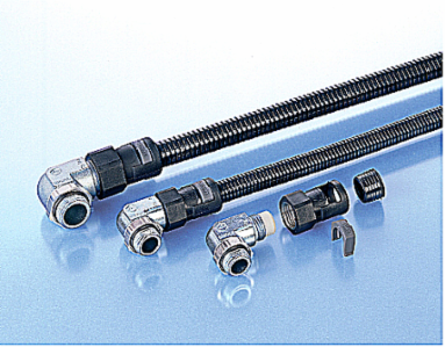

PMA NVWZ-M160S/P1 Fittings for Nylon Flexible Conduits

MPN: NVWZ-M160S/P1
UPC: 078620996638
PPN: T-B-NVWZ-M160S/P1

$115.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

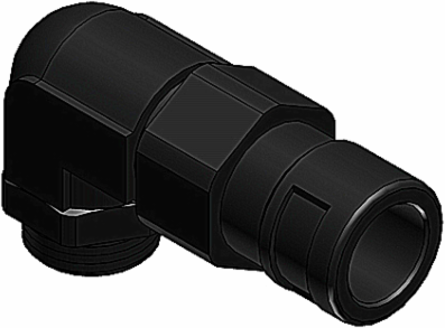

VWZ Connector 90 Degree Elbow, Metric Metal Thread with Strain Relief IP68 - Tread M16x1.5, Conduit Size NW 10, with Sealing Insert, Range 4.0-6.5, Color Black

Specifications

European Specifications (ETIM)

ETIM	EC001176 Screw connection for corrugated plastic hose
Degree of protection (IP)	IP68
Revolving thread	N
Type of connection	Snap connection
Thread connection size	M16 x 1.5
Thread length	8mm
Material	Polyamide
Colour	Black
Approved in combination with protective conduit UR	N
Approved in combination with protective conduit Lloyd's Register	N

Nominal diameter	12mm
Model	90°-elbow
Construction type	Internal thread
Thread type	Metric
Thread material	Brass
Total length	65mm
Material sealing	TPE
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit DIN EN 61386-23	N
Operating temperature	-40 - +135°C

North American Specifications (UNSPSC)

UNSPSC	39131717 Electrical conduit elbow
Brand Name	PMA
Application	Use In Railway Vehicle and Heavy Machine Construction
Color	Black
Trade Size	NW10

IGCC	5746 Electrical conduit elbow
Type	Fittings for Nylon Flexible Conduits
Material	High-Grade Formulated Polyamide, Thread Made of Nickel-Plated Brass
Size	M16
Connection	90 Degree
