PMA NVWZ-M207R/P Fittings for Nylon Flexible Conduits
PMA NVWZ-M207R/P Fittings for Nylon Flexible Conduits
- MPN: NVWZ-M207R/P
- PPN: T-B-NVWZ-M207R/P
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.37/ EA
Description

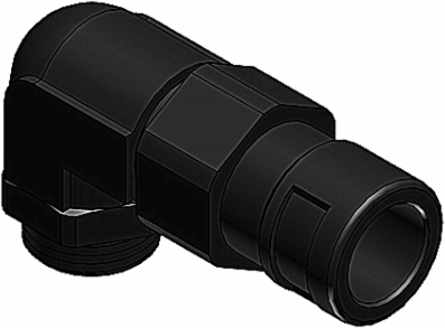

VWZ Connector 90 Degree Elbow, Metric Metal Thread with Strain Relief IP68 - Tread M20x1.5, Conduit Size NW 17, Without Sealing Insert, Range 6.5-9.5, Color Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M20 x 1.5
- Thread length
- 8mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter20mm
Model90°-elbow
Construction typeInternal thread
Thread typeMetric
Thread materialBrass
Total length81mm
Material sealingTPE
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +135°C
North American Specifications (UNSPSC)
- UNSPSC
- 39131717 Electrical conduit elbow
- Brand Name
- PMA
- Application
- Use In Railway Vehicle and Heavy Machine Construction
- Color
- Black
- Trade Size
- NW17
IGCC5746 Electrical conduit elbow

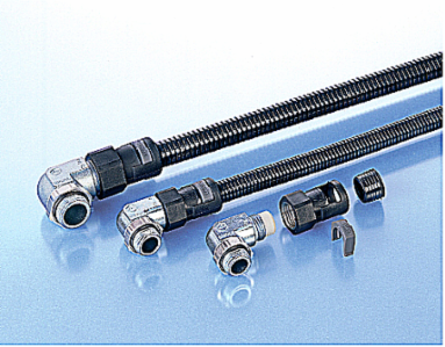

TypeFittings for Nylon Flexible Conduits
MaterialHigh-Grade Formulated Polyamide, Thread Made of Nickel-Plated Brass
SizeM20
Connection90 Degree
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity150
Weight Uom0.22 lbs. Each
