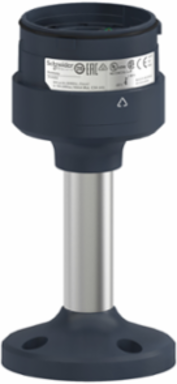

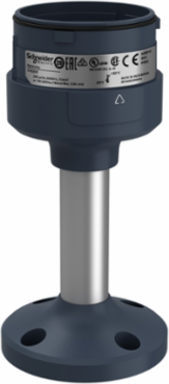

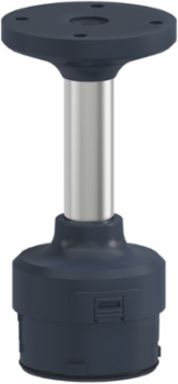

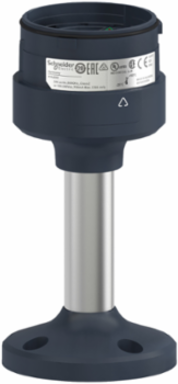

Schneider Electric XVUZ02 Black Fixing Plate with 100mm Aluminium Pole for Modular Tower Lights, 60mm Mounting Diameter, IP65

MPN: XVUZ02
PPN: SCH-XVUZ02

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$80.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

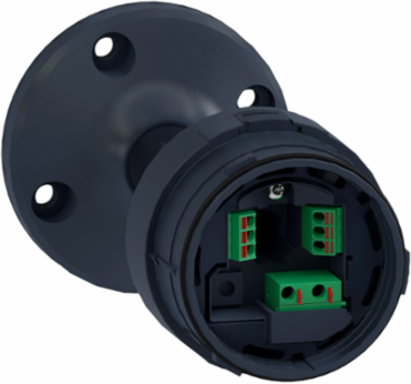

This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.

Features

Featuring a standard 100 mm (3.94 inches) aluminum support tube, this mounting base elevates your modular signaling tower slightly above immediate enclosure surfaces. This ensures your machine status changes stay completely visible to floor operators and safety inspectors over nearby processing equipment and small structural blocks.
Designed with a matching 60 mm twist-to-lock interface mechanical footprint, this accessory links perfectly with the entire Schneider Electric Harmony XVU indicator range. This precise physical match enables automation panel builders to establish a stable, rattle-free base connection that prevents modular signal elements from shaking loose during high-vibration manufacturing cycles.
Constructed from a structural combination of a rigid black polycarbonate mounting plate and a corrosion-resistant aluminum pole, this assembly withstands accidental tools hits, warehouse vibrations, and standard industrial chemical wipe-downs. This rugged design eliminates brittle fracturing common with cheap plastic tubes, maintaining long-term vertical alignment on automated production lines and conveyor systems.

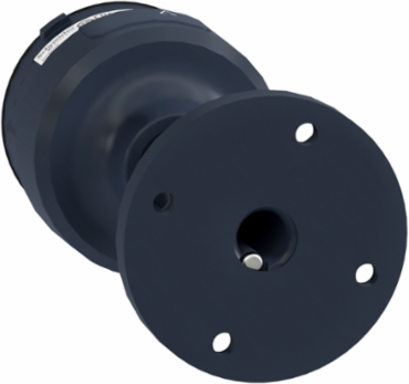

Outfitted with a four-hole circular base plate layout, this mounting piece distributes mechanical load forces evenly across top enclosure covers or heavy machine frames. This wide anchoring base pattern prevents the tower assembly from wobbling or sagging over thousands of service hours, maintaining straight visual lines across critical plant machinery zones.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Chile, China, France, Indonesia, Singapore, United States

Physical Attributes

Housing Color	black

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Material	PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate), aluminium
Carbon Footprint Of The Distribution Phase [A4]	0.01726078557630393, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.13652285898261432, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-07-16
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308032EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Component Name	XVU
Mounting Support	plate with pole
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XVU
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Pep Code	ENVPEP2308032EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27

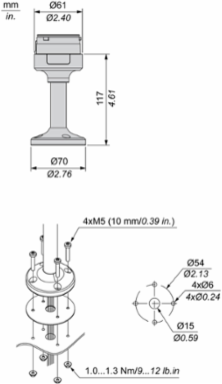

Length Total	117-117 mm
Accessory / Separate Part Category	mounting and fixing accessory
Connections - Terminals	push-in
Package Weight(Lbs)	285.0 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, UL, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.11503412749517065
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.9 kg CO2 eq., 0.8676110753380555
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Diameter	60 mm
Pole Heigth	100-100 mm

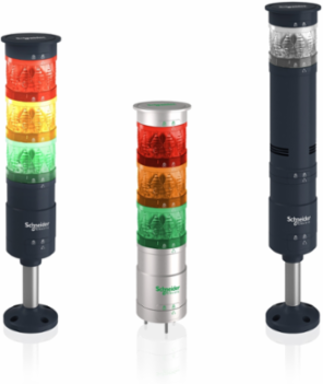

Product Or Component Type	modular tower light
Returnability	Yes
Sustainable Packaging	Yes
Housing Color	black
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	16
[Us] Rated Supply Voltage	24 V AC/DC110...240 V AC
Accessory / Separate Part Type	fixing plate
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531909001

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C, -25-50 °C
Product Compatibility	top AC body, top DC body, top swivel mounting support
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308032EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.1364288473921444
Environmental Disclosure	ENVPEP2308032EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
