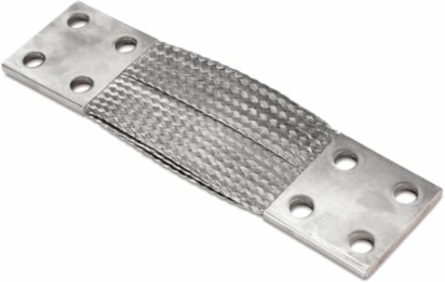

Blackburn FBS4H150A1-12 4-Hole NEMA Flexible Jumper Braid, 3 Inch Width, 5/16 Inch Thickness, 12 Inch Length
- MPN: FBS4H150A1-12
- UPC: 783786007318
- PPN: T-B-FBS4H150A1-12
- UNSPSC: 39121465
CAD
$427.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 12 inches
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Connect Transformers, Generators or Busbars wherever there is severe vibration or misalignment. |
|---|---|
| Cable Length | 12 in |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Flexible Braid Connector - 4-Hole |
| Standards | CEI60694, IEEE/ANSI C37.34-1994. |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20100601 |
| Product Name | FLEXIBLE BRAID |
| Special Functions | 4-Hole NEMA Flexible Jumpers. 36 AWG individual wires in braid construction for extra flexibility. 99.9 percent pure copper ferrules on each end provide high conductivity. Individual wires are tinned prior to weaving to deliver maximum protection from corrosion. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
