Blackburn FBE4H245A1-16 Extra Flexible Braid Connector, 4-Hole, 3-3/4 Inch Width, 16 Inch Length
- MPN: FBE4H245A1-16
- UPC: 783786991624
- PPN: T-B-FBE4H245A1-16
- UNSPSC: 39121465
CAD
$1042.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

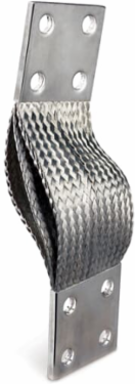

4-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 12, Width 3-3/4 inch, Ferrule Length 4 inch, Distance Between Holes 1-3/4 inch, Hole 9/16 inch, Thickness 1/2 inch, Length 165 inches
Specifications
Additional Information
- Application
- Connect Transformers, Generators or Busbars wherever there is severe vibration or misalignment.
- Cable Length
- 16 in
- Conductor Shape
- Flat
- Material of Conductor
- Tin-Plated Copper
- Product Name
- FLEXIBLE BRAID
- Special Functions
- 4-Hole NEMA Extra-Flexible Jumpers. 36 AWG individual wires in braid construction for extra flexibility. 99.9 percent pure copper ferrules on each end provide high conductivity. Individual wires are tinned prior to weaving to deliver maximum protection from corrosion.
Brand / LabelBoreal
Conductor CategoryFlexible
Effective Date20100601
Number of Batteries0
Product TypeExtra Flexible Braid Connector - 4-Hole
StandardsCEI60694, IEEE/ANSI C37.34-1994.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4695 >> Flexible braid
Container Information
- Package Level 2 Units
- 1 piece
- Package Level 2 Height
- 1 in25 mm
Package Level 2 Width1 in25 mm
Package Level 2 Depth / Length1 in25 mm
Dimensions
- Product Net Length
- 0, mm
