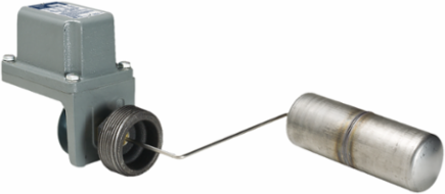

Telemecanique Sensors 9037HR30 Float switch, Square D Pumptrol, closed tank, NEMA 7/9, screw in bushing, 2 NC DPST DB contacts
- MPN: 9037HR30
- UPC: 785901075455
- PPN: TES-9037HR30
CAD
$734.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Float switch, Square D Pumptrol, closed tank, NEMA 7/9, screw in bushing, 2 NC DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Quantity Per Set
- set of 1
- Product Or Component Type
- float switch
- Device Application
- closed tank
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Type Of Packingindividual
Device Short Name9037H
Complementary
- Cable Entry Number
- 2 conduit entries for 3/4"-14 NPT UL 508
- Contact Operation
- contacts close on liquid rise
- Terminal Block Type
- 4 terminals
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher 0-220 °F || sea water specific gravity of 0.85 in or higher 0-220 °F || hydraulic oil specific gravity of 0.85 in or higher 0-220 °F || corrosive fluid specific gravity of 0.85 in or higher 0-220 °F
- Mechanical Durability
- 300 cycles
- Factory Modification
- without
- Operating Position
- vertical position only
- Enclosure Material
- Cast Aluminium
- Local Signalling
- with external pointer
- Materials In Contact With Fluid
- cast iron || stainless steel 316 || nitrile (Buna-N) or equivalent rubber || yellow brass || stainlesss steel 304
- Kit Composition
- float switch || rod || float
Electrical Connectionscrew-clamp terminals 10 AWG
Product Destinationfor closed tank
Terminals Description Iso N°1line-load-load-line
[Ui] Rated Insulation Voltage575 V UL 508
Device Mountingscrew-in bushing
Float Rod Angle90°
Float Movement4.25...8.25 in adjustable
Maximum Operating Rate60 cyc/mn
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Float Positionleft
Electrical Durability100 cycles 60 cyc/mn
Environment
- Product Certifications
- CSA file LR26817 || UL listed file E12443
- Ambient Air Temperature For Storage
- -22-220 °F
- Nema Degree Of Protection
- NEMA 7/9 UL 698
Ambient Air Temperature For Operation-22-220 °F
StandardsUL 508 || CE
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
