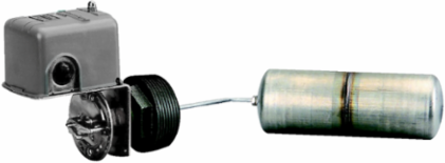

Telemecanique Sensors 9037HG34 Float switch, 9037H, Pumptrol, closed tank, screw-in bushing, NEMA 1, 2NC DPST-DB, 575 VAC, float movement 2...5 in adjustable, float position Left (9037HG34)
- MPN: 9037HG34
- UPC: 785901075592
- PPN: TES-9037HG34
CAD
$244.33
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Float switch, 9037H, Pumptrol, closed tank, screw-in bushing, NEMA 1, 2NC DPST-DB, 575 VAC, float movement 2...5 in adjustable, float position Left (9037HG34)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Product destination | For closed tank |
|---|---|
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG |
| Float movement | 2...5 in adjustable |
| Float rod angle | 45° |
| Materials in contact with fluid | Stainlesss steel 304 stainless steel 316 cast iron nitrile (Buna-N) or equivalent rubber yellow brass |
| Operating position | Vertical position only |
| Operating rate | 60 cycles/min |
| Factory modification | Without |
| Device mounting | Screw-in bushing |
|---|---|
| Controlled fluid | Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F |
| Contact operation | Contacts close on liquid rise |
| Float position | Left |
| Local signalling | With external pointer |
| Enclosure material | Polypropylene or equivalent |
| Terminal block type | 4 terminals |
| Terminals description ISO n°1 | Line-load-load-line |
| Kit composition | Float float switch rod |
Main
| Range of product | Pumptrol |
|---|---|
| Device application | Closed tank |
| Electrical circuit type | Power circuit |
| Type of packing | Individual |
| Product or component type | Float switch |
|---|---|
| Product specific application | Liquid level control |
| Quantity per set | Set of 1 |
Environment
| Standards | CE UL 508 |
|---|---|
| Product certifications | CSA UL listed |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
|---|
