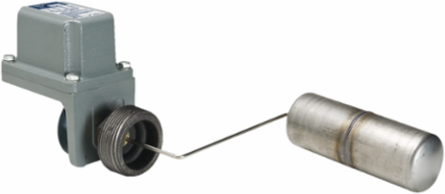

Telemecanique Sensors 9037HR36 Float switch, Square D Pumptrol, closed tank, NEMA 7/9, screw in bushing, 2 NC DPST DB contacts
- MPN: 9037HR36
- UPC: 785901667049
- PPN: TES-9037HR36
CAD
$734.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Float switch, Square D Pumptrol, closed tank, NEMA 7/9, screw in bushing, 2 NC DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D Pumptrol |
|---|---|
| Quantity Per Set | set of 1 |
| Product Or Component Type | float switch |
| Device Application | closed tank |
| Product Specific Application | liquid level control |
|---|---|
| Electrical Circuit Type | power circuit |
| Type Of Packing | individual |
| Device Short Name | 9037H |
Complementary
| Cable Entry Number | 2 conduit entries for 3/4"-14 NPT UL 508 |
|---|---|
| Contact Operation | contacts close on liquid rise |
| Terminal Block Type | 4 terminals |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher 0-220 °F || sea water specific gravity of 0.85 in or higher 0-220 °F || hydraulic oil specific gravity of 0.85 in or higher 0-220 °F || corrosive fluid specific gravity of 0.85 in or higher 0-220 °F |
| Mechanical Durability | 300 cycles |
| Factory Modification | without |
| Operating Position | vertical position only |
| Enclosure Material | Cast Aluminium |
| Local Signalling | with external pointer |
| Materials In Contact With Fluid | cast iron || yellow brass || stainless steel 316 || stainlesss steel 304 || nitrile (Buna-N) or equivalent rubber |
| Kit Composition | rod || float || float switch |
| Electrical Connection | screw-clamp terminals 10 AWG |
|---|---|
| Product Destination | for closed tank |
| Terminals Description Iso N°1 | line-load-load-line |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Device Mounting | screw-in bushing |
| Float Rod Angle | 90° (offset) |
| Float Movement | 2.5...5 in adjustable |
| Maximum Operating Rate | 60 cyc/mn |
| Contacts Type And Composition | 2 NC, snap action, DPST-DB, Form YY |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC |
| Float Position | left |
| Electrical Durability | 100 cycles 60 cyc/mn |
Environment
| Product Certifications | CSA file LR26817 || UL listed file E12443 |
|---|---|
| Ambient Air Temperature For Storage | -22-220 °F |
| Nema Degree Of Protection | NEMA 7/9 UL 698 |
| Ambient Air Temperature For Operation | -22-220 °F |
|---|---|
| Standards | CE || UL 508 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Disclosure | ENVPEP111211EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
