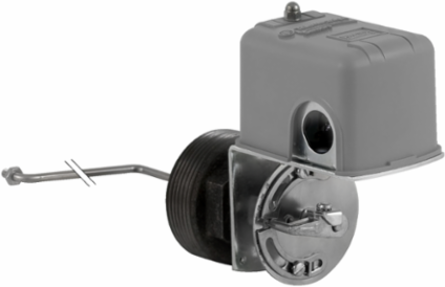

Telemecanique Sensors 9037HG32Z20 Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2NC DPST DB contacts
Telemecanique Sensors 9037HG32Z20 Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2NC DPST DB contacts
- MPN: 9037HG32Z20
- UPC: 785901302841
- PPN: TES-9037HG32Z20
- UNSPSC: 39122219
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.33/ EA
Description
This product is part of the NEMA Pressure Switches range, an offer of float switches. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The closed tank float switch supports screw-in bush mounting method and 90° (offset) float rod angle for operating in left position. Float switch is used in applications where the water level change is 6.00 inches minimum and 11.50 inches maximum. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of polypropylene or equivalent material. It weighs 4.77lb. It is a NEMA 1 rated product. This product is certified by UL, CSA, CE. Meets UL 508 standards. Float switch is attached to the tank by means of a 2-1/2inch bushing. An external pointer indicates the float position within the tank when the unit is mounted. Switch comes complete with stainless steel float and rod. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is attached to the tank by means of a 2-1/2inch bushing. An external pointer indicates the float position within the tank when the unit is mounted. Switch comes complete with stainless steel float and rod.
Specifications
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Ambient Air Temperature For Storage
- -22-220 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
Ambient Air Temperature For Operation-22-220 °F
StandardsCE || UL 508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Contact Operation
- contacts close on liquid rise
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher 0-250 °F || sea water specific gravity of 0.85 in or higher 0-250 °F || hydraulic oil specific gravity of 0.85 in or higher 0-250 °F || corrosive fluid specific gravity of 0.85 in or higher 0-250 °F
- Mechanical Durability
- 300 cycles
- Factory Modification
- without
- Operating Position
- vertical position only
- Maximum Operating Rate
- 60 cyc/mn
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Materials In Contact With Fluid
- stainless steel 316 || cast iron || stainlesss steel 304 || viton || yellow brass
- Net Weight
- 4.77 lb(US)
- Electrical Durability
- 100 cycles 60 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG
Product Destinationfor closed tank
Terminals Description Iso N°1line-load-load-line
Short-Circuit Protection20 A cartridge fuse gG
Device Mountingscrew-in bushing
Float Rod Angle90° (offset)
Float Movement6...11.5 in adjustable
Enclosure Materialpolypropylene or equivalent
Local Signallingwith external pointer
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phases || 0.75 kW 1 hp)460 V AC, 3 phases || 0.75 kW 1 hp)475 V AC, 3 phases || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Float Positionleft
Kit Compositionfloat || rod || float switch
Specifications
- Range Of Product
- Square D Pumptrol
- Quantity Per Set
- set of 1
- Product Or Component Type
- float switch
- Device Application
- closed tank
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Type Of Packingindividual
Device Short Name9037H
