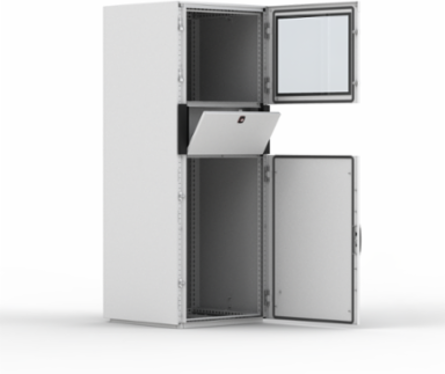

nVent Hoffman MCM16068 Mild Steel Floor Standing Enclosure 1600x600x800 mm, IP44
- MPN: MCM16068
- UPC: 783510493813
- PPN: HOF-MCM16068
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This mild steel floor standing enclosure, MCM, is pre-configured with integrated accessories to ease mounting. This Mild Steel Industrial Computer Enclosure, MCM, MCM16068 item measures 1600x600x800mm has a material of Mild Steel color Light Grey, finish Powder Coated.
Features
- Material: Frame: 1.5 mm steel plate. Roof and side panels: 1.35 mm steel plate. Doors: 2 mm steel plate. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- "Door: Mounted with two hinges per door. Top door with safety glass. Viewing area for 14""- 21""monitor. Two C21323 locks for the top door, and espagnolette two point locking system, with standard 3 mm double-bit lock for the bottom door."
- Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame, with 25 mm hole pattern. Espagnolette four point locking system, with standard 3 mm double-bit lock.
- Keyboard panel: Vertical opening keyboard panel. Sliding mouse pad, allowing left or right hand use. Max keyboard dimensions: 470 × 190 × 45 mm. C21323 lock.
- Bottom plates: Consists of three or four (D> 600) pieces.
- Finish: Two tone finish. Doors, side panels, roof and frame in RAL 7035 structured powder coating. Keyboard side panels and monitor door top cover in RAL 7015 structured powder coating. Other colour schemes optional.
- Features: Special design of roof and side panels for theft security. All panels are only accessible when the doors are unlocked. Your own company name can be inserted in the top cover (option).
- Protection: IP 44, IK 10. With keyboard tray opened, reduces to IP 30.
- Mounting requirements: Equipment shelves need to be added.
- Delivery: Frame with fitted rear door, side panels, roof panel, monitor door, keyboard panel, bottom plates and monitor shelf, with clamps to fix the monitor. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Weight
- 112.5
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Protection Rating
- IP44
Height (H)1,600
Depth (D)800
MaterialMild Steel
ColorLight Grey
Door Thickness2
