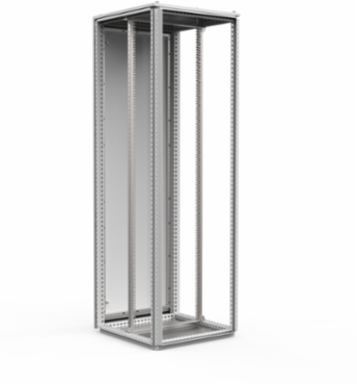

nVent Hoffman MCI18066R5 Floor Stand Enclosure, 1800x600x600mm, Mild Steel, IP55
- MPN: MCI18066R5
- UPC: 783510493325
- PPN: HOF-MCI18066R5
CAD
$3228.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The mild steel combinable floor standing, MCI, is ideal for ICT applications, and requires little assembly time. This Mild Steel Ip Protected Ict Rack, MCI, MCI18066R5 item measures 1800x600x600mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Material: Frame: 1.5 mm steel plate. Door: 2 mm steel plate. Roof plate: 1.5 mm steel plate. Bottom plates: 1 mm galvanized steel. 19" profiles: 2 mm zinc plated steel
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern
- Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern
- Side panels: Supplied as an accessory
- Roof panel: Removable
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories
- Bottom plates: Consists of three or four (D>600) pieces
- 19" profiles: Provides front and side universal 19" hole pattern. Adjustable in depth by steps of 25 mm
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud
- Finish: Frame, rear door and roof plate: RAL 7035 structured powder coating. 19" profiles: zinc plated steel
- Protection: Complies with IP 55 | TYPE 12 | IK 10, when plain front door and side panels are fitted
- Mounting requirements: Add side panels for closed sides. Front frame can be covered with FFC or fitted with a glazed or plain door
- Delivery: Frame with fitted rear door, roof panel, bottom plates. 19" profiles at front and fixing brackets CIB. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Documentation & Downloads
Specifications
Additional
- Protection Rating
- IP55
- Width (W)
- 600 mm
- Rack Units
- 38U
- Door Thickness
- 2 mm
- Material
- Mild Steel
- Color
- Light Gray
- Protection Standards
- TYPE 12, IK 10
- Door Hinge
- Left or right hand opening
Height (H)1,800 mm
Depth (D)600 mm
Body Thickness1.5 mm
Weight66 kg
FinishPowder Coated
Color CodeRAL 7035
Lock TypeEspagnolette 4-point
Mounting Hole Pattern25 mm, DIN 43660
