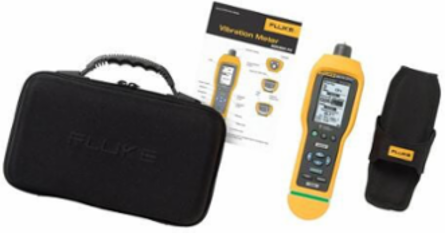

Fluke Fluke 805 FC Fluke 805 FC Vibration Meter Fluke 805 FC
- MPN: Fluke 805 FC
- UPC: 095969726863
- PPN: FLU-FLUKE-805 FC
CAD
$4232.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke 805 FC Vibration Meter Fluke 805 FC
Features
- Quickly create asset list and work order on your PC, setup machine profiles using Fluke Connect App on your smart device, push routes to your 805 FC for your technicians in the field.
- Take accurate, reliable measurements at both low and high frequency ranges
- Store results in the cloud and share data with your team remotely
- Minimize measurement variations caused by device angle or contact pressure
Documentation & Downloads
Specifications
Key Specifications
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
|---|---|
| Severity levels | Good, satisfactory, unsatisfactory, unacceptable |
| A/D converter | 16-bit |
| Sampling rate | Low frequency: 20,000 HzHigh frequency: 80,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
|---|---|
| Vibration limit | 50 g peak (100 g peak-peak) |
| Signal to noise ratio | 80 dB |
| Real time clock backup | Coin battery |
General Specifications
| Battery type | AA (2) Lithium Iron Disulfide |
|---|---|
| Size (L x W x H) | 24.1 cm x 7.1 cm x 5.8 cm(9.5 in x 2.8 in x 2.3 in) |
| Connectors | USB mini-B 7-pin, external sensor jack (SMB connector) |
| Battery life | 250 measurements |
|---|---|
| Weight | 0.40 kg (0.89 lb) |
