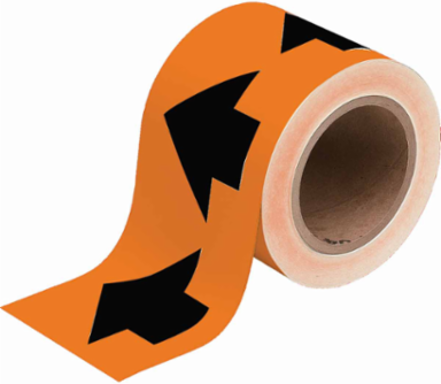

Brady 109942 Food Industry Pipe Banding Tape, Polyester, Black on Orange, 3" x 30 yds
- MPN: 109942
- UPC: 754473681791
- PPN: BRD-109942
- UNSPSC: 55121737
CAD
$167.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- B-302 is particularly suited for outdoor applications, and in harsh environments where excellent abrasion and chemical resistance is required
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
Documentation & Downloads
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Brand Name | Brady® |
| Compatible Surface Types | Cold; High Surface Energy |
| Mounting Type | Self-Adhesive |
| Pre-Printed Areas on Label | Pictogram Only |
| Printer and Label Applications | General Identification; Safety |
| Reflective Type | Non-Reflective |
| Adhesive Type | Permanent Acrylic |
| Illumination | Not Illuminated |
| Label Properties | Permanent Adhesive Labels |
| Material | Polyester with Polyester Overlaminate |
| SAP B-Number | B-302 |
| Depth (mm/cm/m) | 0.15 mm |
| Dimensions (Metric) | 0.15 mm D |
| Length (in/ft/yd) | 30 yd |
| Maximum Service Temperature °C | 110 °C |
| Minimum Application Temperature °C | -18 °C |
| Minimum Service Temperature °C | -40 °C |
| Roll Width (in/ft/yd) | 3 in |
| Roll/Tape Length (in/ft/yd) | 30 yd |
| Roll/Tape Size (in/ft/yd) | 3 in W x 30 yd L |
| Thickness (in/ft/yd) | 0.01 in |
| Width (in/ft/yd) | 3 in |
| Arrow Direction | Left/Right |
|---|---|
| Color | Black on Orange |
| Enables Industry Compliance | ANSI A13.1-2007 |
| Pipe Marker Mounting Style | Self-Adhesive |
| Primary Noun, Basic Function | Pipe Marking Tape |
| PSPA Photoluminescence Class | Not Illuminated |
| Self-Adhesive Pipe Marker Format | Roll Form, Continuous |
| Brady Material Number | B-302 |
| Indoor or Outdoor Use | Outdoor Use |
| Laminated | Laminated |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant |
| Average Outdoor Durability | 5 to 8 Years |
| Dimensions | 3 in W x 30 yd L |
| Dimensions 2 | 3 in W |
| Length (mm/cm/m) | 27.43 m |
| Maximum Service Temperature °F | 230 °F |
| Minimum Application Temperature °F | 0 °F |
| Minimum Service Temperature °F | -40 °F |
| Roll Width (mm/cm/m) | 76.2 mm |
| Roll/Tape Length (mm/cm/m) | 27.43 m |
| Roll/Tape Size (mm/cm/m) | 76.2 mm W x 27.43 m L |
| Thickness (mm/cm/m) | 0.254 mm |
| Width (mm/cm/m) | 76.2 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
