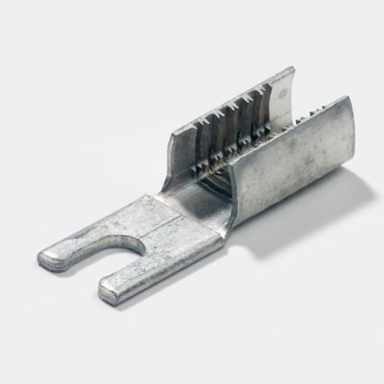

Dragon Tooth 22F061 FORK TERM CU 24-15 AWG NO6 STUD

MPN: 22F061
UPC: 786210811314
PPN: T-B-22F061
UNSPSC: 39121432

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.29/ EA

Qty:

Loading add to cart quantity...

Description

Insulation Piercing Magnet Wire Fork Terminal, Length .78 Inches, Width .30 Inches, Length of Teeth .32 Inches, Width of Teeth .16 Inches, Stud Size 6, Wire Range #24 AWG - #15 AWG 404 Circular Mil Area - 4,100 Circular Mil Area, Copper Alloy, Tin Plated

Specifications

Additional Information

Application: For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Effective Date: 19800612

Product Name: STA-KON AND CATAMOUNT TERMINAL

Special Functions: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Sub Brand / Label: Dragon Tooth

Brand / LabelSta-Kon

MaterialCopper

Product TypeFork Terminal

StandardsUL E9809

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4603 >> Electrical terminals

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
