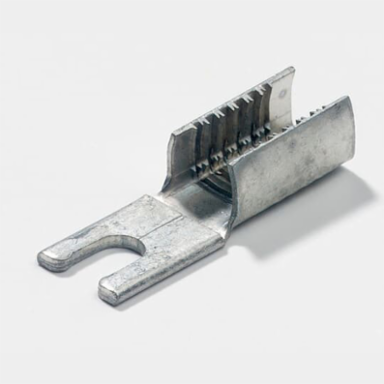

Dragon Tooth 22F066 FORK TERM CU 16-12 AWG NO6 STUD

MPN: 22F066
UPC: 786210837505
PPN: T-B-22F066
UNSPSC: 39121432

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.97/ EA

Qty:

Loading add to cart quantity...

Description

Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 6, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Specifications

Additional Information

Application: For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Effective Date: 19791127

Product Name: ELECTRICAL TERMINAL

Special Functions: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Sub Brand / Label: Dragon Tooth

Brand / LabelSta-Kon

MaterialCopper

Product TypeFork Terminal

StandardsUL E9809

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
