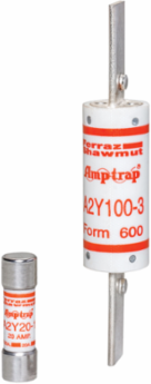

Mersen A2Y35-1 Form 600 Fuse 250V 35A Type 1 Ferrule Mount, 500V DC, 0.81 Inch Diameter

MPN: A2Y35-1
UPC: 782001902513
PPN: FER-A2Y35-1

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$153.57/ EA

Qty:

Loading add to cart quantity...

Description

Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.

Specifications

Rated voltage AC UL: 250 V

Frequency (Hz): 50/60 Hz

AC or DC: AC/DC

AC Max I.R./Breaking Capacity: I1: 200 kA

Connection/Terminal Type: Ferrule

L/R (ms): 10 ms

Weight: 0.14 lb

Rated voltage DC UL500 V

Ampere Rating35 A

MountingClip

Connection/Terminal MaterialTin-Plated Copper

Body/Insulating MaterialGMG

Length3 in
