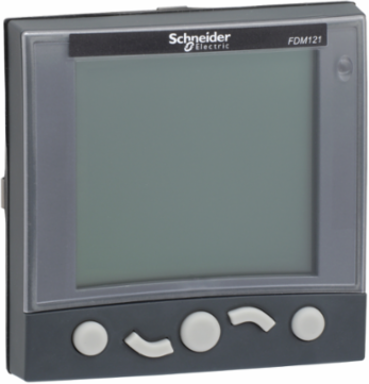

Schneider Electric TRV00121 Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face
- MPN: TRV00121
- PPN: SCH-TRV00121
- UNSPSC: 39121601
CAD
$2618.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used) The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software.
Features
- Displays the measurements, alarms, and operating assistance data
- Connection to 1 device over Ethernet
- Global access to information about your circuit breakers in one user interface
- Simple and agile touch screen
- Mounted in any location on your switchboard for ergonomic access
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 33.6 mm |
| Weight | 244.5 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC - 20...10 % |
|---|
Important Information Attributes
| Persona Type Ids | LC, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Function Of Module | remote control, view network, metering, display alarm |
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
| Accessory / Separate Part Category | spare part ComPact NS630b...1600, spare part ComPact NS1600b...3200, display and signalling accessory |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.316327262 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 11 kg CO2 eq., 10.6850235 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 2 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | remote control |
| Device Short Name | FDM121 |
| Display Type | LCD screen with white backlighting |
| Mounting Mode | flush mounting |
| Product Name | Enerlin'X FDM |
| Range | Enerlin'X |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 17 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Height Nominal | 96 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Contractor, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Support | surface mount with kit, door cut-out |
| Certificate Agency | CE, CSA, UL |
| Carbon Footprint Of The Distribution Phase A4 | 0.031971751, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.100540928, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 5 kg CO2 eq., 5.428747059 |
| Local Publishable Date | 2026-06-02 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2305023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Compatibility Code | FDM121 |
| Current Consumption | 21 mA |
| Display Resolution | 128 x 128 pixels |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | display module |
| Returnability | No |
| Sustainable Packaging | Yes |
| View Angle Horizontal X Vertical | 60 x 30° |
| Pop Directive | No POPs |
| Data Source | extrapolated product |
| Width Nominal | 96 mm |
| Customs Code | 8537109170 |
| Silicone Free | No |
| Functional Unit Description | FDM128 is part of EnerlinX communication system, and it collects data from up to 8 devices via Ethernet network and intend to display the measurements, alarms, and operating assistance data for 10 years in accordance with CE, CSA and UL standards. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 6 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Carbon Footprint | 16.5626105 |
| Environmental Disclosure | ENVPEP2305023EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | No |
| Circularity Profile | ENVEOLI2305023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP53 front face: |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2305023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
|---|
| Product Or Component Type | display module |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
