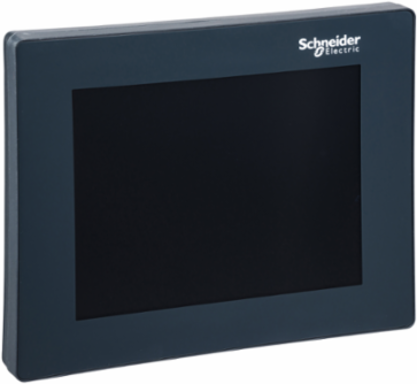

Schneider Electric LV434128 FDM128 Ethernet Switchboard Display, 115.2 x 86.4mm, IP65, 6.8W
- MPN: LV434128
- PPN: SCH-LV434128
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States, ZZ
Depth56.5 mm
Important Information Attributes
- Persona Type Ids
- LC, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Function Of Module
- remote control, view network, metering, display alarm
- Certificate Agency
- CE, CSA, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11128, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.34994, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 73 kg CO2 eq., 73.245
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Manufacturing Carbon Footprint
- 37.19
- End Of Life Carbon Footprint
- 1.101
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2305023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1902
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Compatibility Code
- FDM128
- Device Short Name
- FDM128
- Display Type
- active matrix colour TFT LCD with LED backlight
- Mounting Mode
- flush mounting
- Power Consumption In W
- 6.8 W
- Product Name
- Enerlin'X FDM
- Range
- Enerlin'X
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 112 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- FDM128 is part of EnerlinX communication system, and it collects data from up to 8 devices via Ethernet network and intend to display the measurements, alarms, and operating assistance data for 10 years in accordance with CE, CSA and UL standards.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 178.704
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 129 mm
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 37.146
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 1.0755
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 73.245
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 2344.0182
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 1.5504
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1866.1
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -4.125
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.3859
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 309.85
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 54.015
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 1.4574
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 35.123
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -2.2503
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 0.2315
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 8.8695
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 10.538
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 9.4403
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 2718.3984
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 1.5525
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2224.4
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -4.3702
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 358.33
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 9.4403
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 450.59
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 3.6438
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 12.694
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 1.042
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 14.053
- Use Of Secondary Materials (Kg) Total Life Cycle
- 0.1585
- Customs Code
- 8531200020
Persona Type NamesContractor, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
Accessory / Separate Part Categoryspare part ComPact NS630b...1600, spare part ComPact NS1600b...3200, display and signalling accessory
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.101
Carbon Footprint Of The Manufacturing Phase [A1 To A3]37 kg CO2 eq., 37.19
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-07-10
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Use Carbon Footprint73.245
Weee ApplicabilityFinished product
Weee Product Category2
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typeremote control
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Mounting Supportsurface mount with kit
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typedisplay module
ReturnabilityYes
Sustainable PackagingNo
View Angle Horizontal X Vertical70 x 80°
Pep CodeENVPEP2305023EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %6
Width Nominal163 mm
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)824.400 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]73.147
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]37.19
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]1.101
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]460.03
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.6438
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]12.694
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]969.92
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]788.79
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-4.3114
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-4.2823
Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]1.8328
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]108.9
Materials For Recycling (Kg) Installation [A5]0.1921
Net Use Of Fresh Water (M3) End Of Life [C1-c4]4.0565
Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.1372
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-2.0199
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]9.4403
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]475.13
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.9049
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]13.411
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]15.095
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle9.4403
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2334.5782
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]1.5504
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1866.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-4.125
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.042
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]358.33
Use Of Secondary Materials (Kg) Manufacturing [A1-a3]0.1585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 111.99722
- Environmental Disclosure
- ENVPEP2305023EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Circularity ProfileENVEOLI2305023EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP54IP65 front face:
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2305023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
Product Or Component Typedisplay module
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
