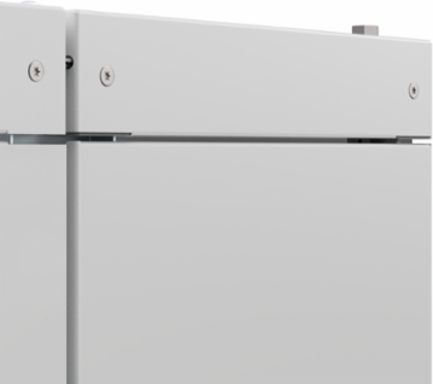

nVent Hoffman DPC0716R5 Front Panel 104x600 mm, Mild Steel, Powder Coated, IP44
- MPN: DPC0716R5
- UPC: 783510470784
- PPN: HOF-DPC0716R5
CAD
$1288.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Both the enclosure's aesthetics and IP-rating are maintained when a complete set of doors and panels are mounted. This Top And Bottom Panels For Floor Standing Enclosures, DPC, DPC0716R5 item measures 104x600x17mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: Required to cover the remaining space at the top and bottom. Used in combination with horizontal dividers CDH/CDHK, partial doors DP, partial panels DPP and cable space door DPA.
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 44. For IP 21 delivered without gasket.
- Mounting requirements: DPC covers 200 mm in height of the enclosure. So for a 2000 mm high enclosure when DPC is used, there is 1800 mm space left for partial doors/panels.
- Pack quantity: Top and bottom panel with mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Works With
- IEC
- Protection Rating
- IP44
- Material
- Mild Steel
- Color
- Light Gray
- Thickness (T)
- 1.75
Height (H)104
Depth (D)17
Enclosure MaterialMild Steel
Product FamilyFree-Standing
FinishPowder Coated
Color CodeRAL 7035
