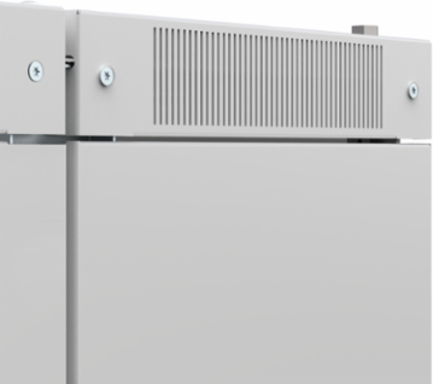

nVent Hoffman DPCV0716R5 Ventilated Front Panel 100x600 Mild Steel IP20 Powder Coated
- MPN: DPCV0716R5
- UPC: 783510471385
- PPN: HOF-DPCV0716R5
CAD
$1416.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Ventilated Top And Bottom Panels For Floor Standing Enclosures, DPCV, DPCV0716R5 item measures 104x600x17mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: Required to cover the remaining space at the top and bottom. With ventilation slots for added heat dissipation in switchgear enclosures. Used in combination with horizontal dividers CDH/CDHK
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 20.
- Mounting requirements: DPCV covers 200 mm in height of the enclosure. So for a 2000 mm high enclosure when DPCV is used, there is 1800 mm space left for partial doors/panels.
- Pack quantity: 2 panels with mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 600 |
| Height 1 (H1) | 70 |
| Works With | IEC |
| Protection Rating | IP20 |
| Material | Mild Steel |
| Color | Light Gray |
| Thickness (T) | 1.75 |
| Height (H) | 104 |
|---|---|
| Depth (D) | 17 |
| Height 2 (H2) | 100 |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Finish | Powder Coated |
| Color Code | RAL 7035 |
