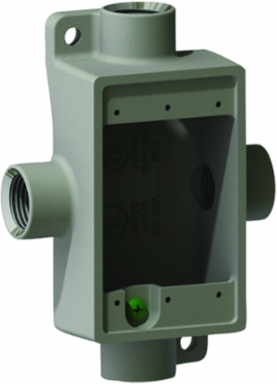

Killark FSX-1 Aluminum Device Box - Shallow - 1/2 Inch Hub Size - 10.12 x 4.68 x 7.062 Inch Dimensions
- MPN: FSX-1
- UPC: 783936190716
- PPN: HBL-FSX-1
- UNSPSC: 39121308
CAD
$115.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
FSX Series Fittings - Aluminum - FSX Type Cast Device Box - Shallow -Hub Size 1/2 In - Volume 18.0 Cu In
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 7.062 in
- Length
- 10.12 in
- Color
- Gray
- Size
- 10.12 in x 4.68 in x 7.062 in
- Type
- Device Box
- Engineering Drawing 1 Display Text
- FSX-1 Engineering Drawing
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- FSX
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4
- NAICS Code
- 3359326103
Dimensions10.12 in x 4.68 in x 7.062 in
Hub Size1/2"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width4.68 in
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - Invoice1/2" K ALUM SHALLW DEVICE BOX TYPE FSX
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.95
UL File NumberE3397
SeriesF Series
BOX SIZE5.000x12.250x5.250 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783936190716
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
