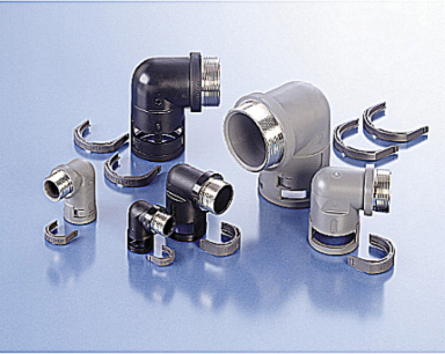

PMA MVWV-P112 Fittings for Nylon Flexible Conduits
- MPN: MVWV-P112
- UPC: 786209960474
- PPN: T-B-MVWV-P112
CAD
$19.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

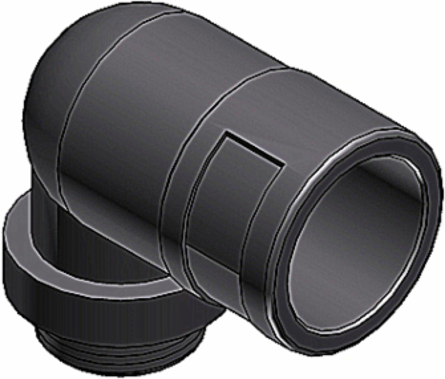

VWV Connector 90 Degree Elbow, PG Metal Thread - Thread 11, Fits to Conduit Size NW/Metric 12/16, Color Gray
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | PG11 |
| Thread length | 12mm |
| Total height | 45mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | Y |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
| Nominal diameter | 16mm |
|---|---|
| Model | 90°-elbow |
| Construction type | Internal thread |
| Thread type | Other |
| Thread material | Brass |
| Total length | 45.5mm |
| Material | Polyamide |
| Colour | Grey |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | N |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 350 |
|---|---|
| Weight Uom | 0.13 lbs. Each |
North American Specifications (UNSPSC)
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| Brand Name | PMA |
| Application | Use In Railway Vehicle and Heavy Machine Construction |
| Material | High-Grade Specially Formulated Polyamide, Thread Made of Nickel-Plated Brass |
| Size | PG11 |
| Connection | 90 Degree |
| IGCC | 5746 Electrical conduit elbow |
|---|---|
| Type | Fittings for Nylon Flexible Conduits |
| Standard | CSA |
| Color | Gray |
| Trade Size | NW12/16 Metric |
