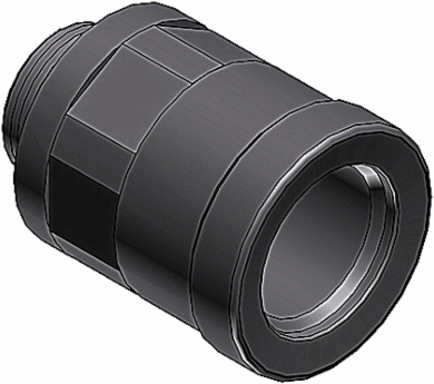

PMA MKNH-M120-10 Connectors-Straight-Two Piece
- MPN: MKNH-M120-10
- UPC: 786209959263
- PPN: T-B-MKNH-M120-10
CAD
$16.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PMAFIX Pro Straight Grey Two-Piece Connector with Metric Threads, Connector Material - Polyamide 6, Thread Material - Nickel-Plated Brass, Thread Size - M12x1.5, Thread Length - 10, Conduit Size NW - 10
Features
- Very high impact resistance, even at very low temperatures
- High thread and system connection strengths
- Easy push-in assembly for maximum installation reliability
- Screwdriver required for dismantling, impeding unauthorized or accidental opening
- Space-saving dismantling
- Excellent conduit pull-out strength
- Fits both conduit profiles - Fine (T) and coarse (G)
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- Other
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M12 x 1.5
- Thread length
- 10mm
- Material
- Polyamide
- Colour
- Grey
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter12mm
ModelStraight
Construction typeInternal thread
Thread typeMetric
Thread materialBrass
Total length45mm
Material sealingOther
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-50 - +105°C
North American Specifications (UNSPSC)
- UNSPSC
- 39131707 Electrical conduit coupling
- Brand Name
- PMA
- Special Features
- Connectors-Straight-Two Piece
- Material
- Polyamide/Nylon 6
IGCC5548 Electrical conduit coupling
TypeConnectors-Straight-Two Piece
ApplicationFor Applications with High Technical Requirements and In Most Demanding Climatic Conditions
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity250
Weight Uom0.09 lbs. Each
