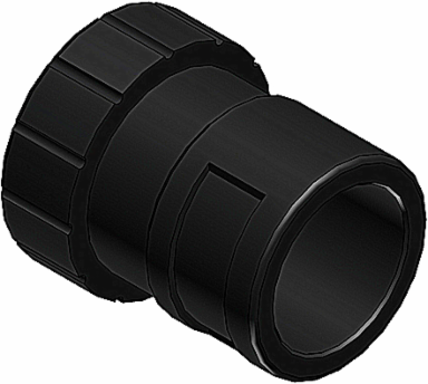

PMA BVIVG-U187 Adapters-Female
- MPN: BVIVG-U187
- UPC: 786209950567
- PPN: T-B-BVIVG-U187
CAD
$11.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PMAFIX Black Female Thread Adapter with UNEF Threads and O-Ring, Material - Polyamide 6, Thread Size - 3/4 Inch -20, Conduit Size NW - 17
Features
- Very high impact resistance
- Vibration proof connection to PMAFLEX conduits
- High conduit pull-out strength
- Very good chemical properties
- Self-extinguishing, free from halogens and cadmium
- Fits both conduit profiles - Fine (T) and coarse (G)
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Thread length | 9mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | Y |
| Nominal diameter | 20mm |
|---|---|
| Model | Straight |
| Construction type | External thread |
| Thread type | UNEF |
| Thread material | Polyamide |
| Total length | 46.5mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
| Operating temperature | -40 - +105°C |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | PMA |
| Application | For Use In Machine, Vehicle and Traction Building |
| Material | Polyamide 6 |
| Color | Black |
| Temperature Rating | -40 Degrees C to 105 Degrees C; Short Term to 160 Degrees C |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Adapters-Female |
| Size | NW17 |
| Insulation Class | IP68 |
| Connection | 3/4 Inch |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 250 |
|---|---|
| Weight Uom | 0.04 lbs. Each |
