Sta-Kon RB25177 Male Tab
- MPN: RB25177
- UPC: 786210893815
- PPN: T-B-RB25177
CAD
$1.01
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

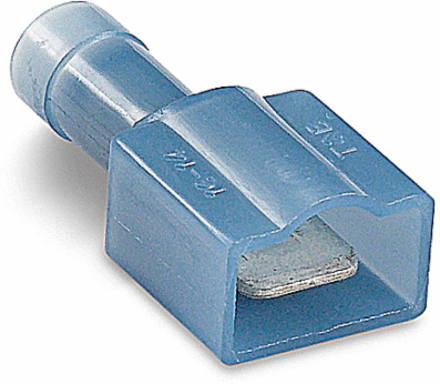

Nylon Insulated Male Tab, Length 1.13 Inches, Width .45 Inches, Maximum Insulated .170, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
Features
- Application Tools: WT145C, WT2000, WT112M, ERG4001
- Alternate Package Qty: 14RB251T
Specifications
Packaging
| Inner Quantity | 500 |
|---|---|
| Outer Quantity | 5000 |
| Weight Uom | 3.75 lbs. per 1000 |
| Inner Dimensions (inches) | 6.1x5.1x4.19 |
|---|---|
| Outer Dimensions (inches) | 12.9x11x11 |
European Specifications (ETIM)
| ETIM | EC000516 Round or flat plug/receptacle |
|---|---|
| Colour insulation | Blue |
| Material | Copper |
| Insulation | Partially Insulated |
|---|---|
| Material insulation | PA |
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Sta-Kon |
| Standard | UL E66716 |
| Voltage Rating | 300V |
| Color | Blue |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Male Tab |
| Wire Size | 16-14 |
| Material | Brass |
