Mersen

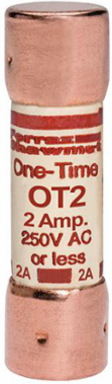

Mersen OT2 Fuse Class K5 250V 2A Fast-Acting, 0.56 Inch Diameter, 50 kA Breaking Capacity

  • MPN: OT2
  • UPC: 782001700010
  • PPN: FER-OT2

CAD

$9.65

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.

Specifications

Key Specifications

Rated voltage AC UL250 V
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassClass K5
MountingClip
Connection/Terminal MaterialCopper
Body/Insulating MaterialPaper
Weight0.029 lb
Rated voltage DC UL250 V
Ampere Rating2 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I150 kA
Connection/Terminal TypeFerrule
Length2 in
Fuse Class K5 250V 2A Fast-Acting, 0.56 Inch Diameter, 50 kA Breaking Capacity
