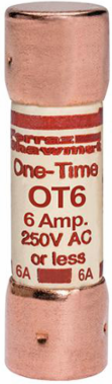

Mersen OT6 Fuse Amp-Trap 250V 6A Fast-Acting Class K5, 0.56 Inch Diameter, 50 kA Breaking Capacity
Mersen OT6 Fuse Amp-Trap 250V 6A Fast-Acting Class K5, 0.56 Inch Diameter, 50 kA Breaking Capacity
- MPN: OT6
- UPC: 782001700058
- PPN: FER-OT6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.65/ EA
Description
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
Specifications
Specifications
- Rated voltage AC UL
- 250 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class K5
- Mounting
- Clip
- Connection/Terminal Material
- Copper
- Body/Insulating Material
- Paper
- Weight
- 0.029 lb
Rated voltage DC UL250 V
Ampere Rating6 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I150 kA
Connection/Terminal TypeFerrule
Length2 in
