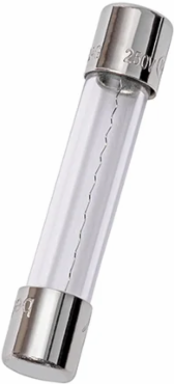

Mersen GGC6 Fast-Acting Glass Fuse 250V 6A 1/4 Inch x 1-1/4 Inch
- MPN: GGC6
- UPC: 782001760731
- PPN: FER-GGC6
CAD
$0.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
Features
- Engineered with a precise 6-Amp current capacity at 250V AC, this Midget fuse provides dependable overcurrent protection for specialized power supplies, control transformers, and small motor circuits. It targets and interrupts low-level overloads before they can damage downstream electronic components, minimizing repair costs and operational downtime.
- Measuring exactly 1/4 in times 1-1/4 in (6.3 times 32 mm), this standard GGC-series glass fuse fits perfectly into existing panel-mount fuse blocks, inline holders, and clip-style disconnect switches. This exact mechanical footprint eliminates enclosure compatibility guesswork, allowing maintenance electricians to execute quick, hassle-free replacements without retrofitting hardware.
- Featuring a crystal-clear glass tube, this cartridge fuse allows for immediate visual inspection of the internal filament link. When a short circuit or overload occurs, the broken link or visible discoloration is easily spotted through the glass, drastically reducing diagnostic time for facility technicians and getting your machinery back online faster.
- Built to deliver versatile overcurrent protection, this fuse boasts a massive 10,000-Amp interrupting rating (I.R.) at 125V AC and a specialized 200-Amp I.R. at 250V AC. This dual-rated capability ensures that the fuse can safely clear catastrophic short-circuit currents within its threshold, completely isolating downstream electronic components and preventing severe electrical fires or arc flashes.
Documentation & Downloads
Specifications
Additional
- Amperage
- 6 A
- Fuse Type
- Fast-Acting
- Size
- 6.3x32 mm
- Mounting
- Clip
- Material
- Glass
- RoHS Compliant
- Yes
Voltage250 V AC
Fuse ClassSupplemental
Length1.25 in
Connection TypeFerrule
Weight0.01 lb
