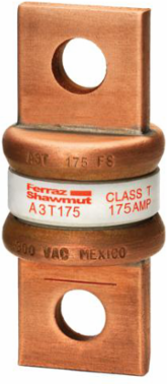

Mersen A3T175 Fast-Acting Class T Fuse 300V 175A, 2.44 Inch Long, 1.12 Inch Wide, 0.18 lb Weight
- MPN: A3T175
- UPC: 782001890223
- PPN: FER-A3T175
CAD
$98.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Specifications
Key Specifications
- Rated voltage AC UL
- 300 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class T
- Mounting
- Bolted
- Connection/Terminal Material
- Copper
- Body/Insulating Material
- GMG
- Weight
- 0.161 lb
Rated voltage DC UL160 V
Ampere Rating175 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length2.44 in
