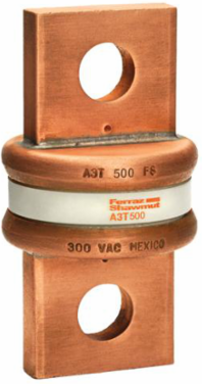

Mersen A3T500 Fast-Acting Class T Fuse 500A 300V with Blade Connection

MPN: A3T500
UPC: 782001890308
PPN: FER-A3T500

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$254.80/ EA

Qty:

Loading add to cart quantity...

Description

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications

Rated voltage AC UL: 300 V

Frequency (Hz): 50/60 Hz

ROHS Compliant: Yes

Fuse Class: Class T

Mounting: Bolted

Connection/Terminal Material: Copper

Body/Insulating Material: GMG

Weight: 0.446 lb

Rated voltage DC UL160 V

Ampere Rating500 A

AC or DCAC/DC

Speed/CharacteristicFast-Acting

AC Max I.R./Breaking Capacity: I1200 kA

Connection/Terminal TypeBlade

Length3.06 in
