Mersen

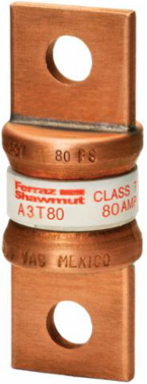

Mersen A3T80 Amp-Trap® 80A Class T Fast-Acting Fuse 300V, 0.81 Inch Diameter, 2.16 Inch Length

Amp-Trap® 80A Class T Fast-Acting Fuse 300V, 0.81 Inch Diameter, 2.16 Inch Length
  • MPN: A3T80
  • UPC: 782001890162
  • PPN: FER-A3T80

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$64.98/ EA

Description

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications

Specifications

Rated voltage AC UL
300 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class T
Mounting
Bolted
Connection/Terminal Material
Copper
Body/Insulating Material
GMG
Weight
0.075 lb
Rated voltage DC UL160 V
Ampere Rating80 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length2.16 in
