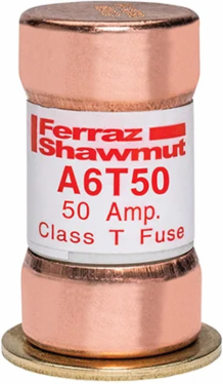

Mersen A6T50 Fuse Amp-Trap® Class T 50A Fast-Acting, 600V, Ferrule Connection, 1.57 Inch Length
- MPN: A6T50
- UPC: 782001891107
- PPN: FER-A6T50
CAD
$72.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Features
- Engineered with advanced single-element, fast-acting characteristics, this Amp-Trap series fuse reacts within microseconds to severe overcurrent events. By forcing an extremely low peak let-thru current, it safely isolates faults before catastrophic electrical surges can compromise or destroy vulnerable solid-state components in your modern electrical drives and controllers.
- Built to manage massive electrical spikes safely, it boasts a heavy-duty 200kA AC and 100kA DC interrupting rating at full voltage. This ultra-high AIC (Ampere Interrupting Capacity) ensures reliable, explosive-free fault clearing even when installed in demanding, high-available-fault environments like main load centers, commercial panelboards, and complex industrial switchboards.
- Measuring just 0.81 inches in diameter and 1.57 inches in length, this Class T fuse delivers full 600VAC/300VDC industrial protection at a fraction of the size of standard Class R or Class J fuses. The ultra-compact cylindrical body provides invaluable design flexibility, allowing you to shrink the overall footprint of your panelboard layouts, metering centers, and disconnect switches without sacrificing safety.
- Constructed with a premium glass melamine (GMG) body, this power fuse provides superior structural integrity and dimensional stability that will not warp, carbonize, or degrade under elevated operational temperatures. The internal architecture utilizes solid copper contacts for optimal conductivity, while the outer blade permanently stamps the part number directly into the metal to prevent identification fading from heat over time.
Documentation & Downloads
Specifications
Additional
- Amperage
- 50 A
- Interrupting Rating AC
- 200 kA
- Fuse Type
- Class T, Fast-Acting
- Connection Type
- Ferrule
- Frequency
- 50/60 Hz
- Connection Material
- Copper
- AC or DC
- AC/DC
Voltage600 V AC / 300 V DC
Interrupting Rating DC100 kA
Length1.57 in
MountingClip
Body MaterialGMG (Glass Melamine)
Weight0.083 lb
ComplianceUL Listed 248-15, CSA Certified C22.2 no. 248.15
