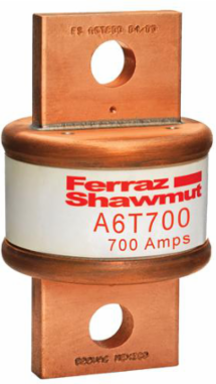

Mersen A6T700 Fuse Amp-Trap® Fast-Acting Class T 700A 600V with Blade Connection
- MPN: A6T700
- UPC: 782001891572
- PPN: FER-A6T700
CAD
$948.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- Speed/Characteristic
- Fast-Acting
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- Blade
- Length
- 4.33 in
Rated voltage DC UL300 V
Ampere Rating700 A
Fuse ClassClass T
MountingBolted
Connection/Terminal MaterialCopper
Body/Insulating MaterialGMG
Weight1.3 lb
