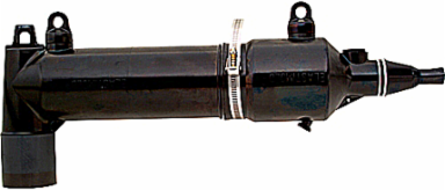

Thomas & Betts 168FLR3-B0210 Loadbreak Fused Elbow Connector
- MPN: 168FLR3-B0210
- UPC: 783786381548
- PPN: T-B-168FLR3-B0210
CAD
$2598.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 2 AWG Solid/Compact.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 9.38 lbs. Each |
| Outer Dimensions (inches) | 14.5x4.75x15.75 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching. |
| Standard | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| Conductor Range | #3 Stranded Compressed, #2 Solid Compact |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Fused Elbow Connector |
| Application | Protect Light Duty Underground Distribution Systems |
| Size | Length 21.12 inches from bottom to center of Bushing |
| Material | EPDM Rubber |
| Voltage Rating | 8.3kV |
| Insulation | Yes, EPDM Rubber |
