Thomas & Betts 168AFLR3D0230 Fuse Housing
- MPN: 168AFLR3D0230
- UPC: 783786521425
- PPN: T-B-168AFLR3D0230
CAD
$2837.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

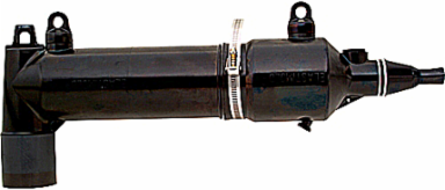

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 1 AWG Stranded Compressed, 1/0 AWG Solid/Compact
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 11.5x4.75x14.5 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Two Direct Test Ports, Large Housing |
| Standard | IEEE 386 Standard |
| Material | EPDM Rubber |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Fuse Housing |
| Application | 8.3kV, 65 and 80 Amps |
| Size | Approximately 8-7/8 inch wide x 21 inches long |
| Temperature Rating | -40 to + 60 Degrees C. |
