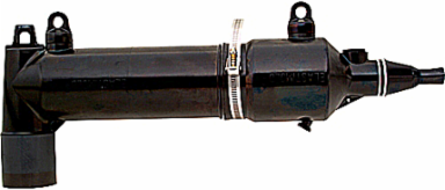

Thomas & Betts 168AFLR3C0270 Fuse Housing
- MPN: 168AFLR3C0270
- UPC: 783786531141
- PPN: T-B-168AFLR3C0270
CAD
$2735.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Aluminum Conductor size 4/0 AWG Stranded Compressed.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 26121630 Cable accessories
- Brand Name
- Elastimold
- Special Features
- Two Direct Test Ports, Large Housing
- Standard
- IEEE 386 Standard
- Material
- EPDM Rubber
IGCC1779 Cable accessories
TypeFuse Housing
Application8.3kV, 65 and 80 Amps
SizeApproximately 8-7/8 inch wide x 21 inches long
Temperature Rating-40 to + 60 Degrees C.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)11.5x4.75x14.5
