Bussman

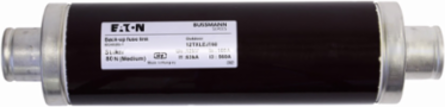

Bussman 12TXLEJ160 Medium Voltage Fuse-Link, 160 A, AC 12 kV, 3.5 Inch, 88 x 292 mm, DIN, With Striker

Medium Voltage Fuse-Link, 160 A, AC 12 kV, 3.5 Inch, 88 x 292 mm, DIN, With Striker
  • MPN: 12TXLEJ160
  • UPC: 051712186155
  • PPN: BUS-12TXLEJ160

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3898.27/ EA

Specifications

Specifications

Interrupt rating
63 kAIC
Release characteristic
Other
Rated frequency - min
50 Hz
Voltage rating
12 kV
Special features
Back-up, Transformer protection, Indoor or outdoor use
Performance Cat According To IEC 60282-1
Back-up
Construction type
Bolt-on
Quantity
1
Barrels
1
Breaking capacity
63 kA
Pre arc (I2T)
1.1 x 105
Installation technique
Air
Packaging type
Standard
StandardDIN
Amperage Rating160 A
With strikerYes
Fuse indicatorWith Striker
Rated frequency - max50 Hz
Construction size88 x 292 mm
ColorBrown
Utilization categoryOther
TypeFuse
ClassClass back-up
Applicationtransformer protection | indoor or outdoor use
Voltage typeAC

General

UPC
051712186155
Product Length/Depth
360 mm
Product Width
88 mm
Warranty
Not Applicable
Certifications
UL
EAN5027590225793
Product Height88 mm
Product Weight3997 g
CompliancesContact factory
