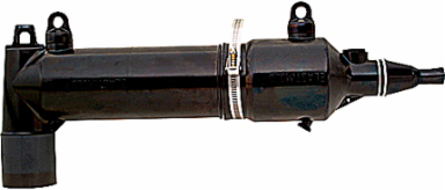

Thomas & Betts 274FLR3-C0240 Loadbreak Fused Elbow Connector with Test Point

MPN: 274FLR3-C0240
UPC: 783786430987
PPN: T-B-274FLR3-C0240

$2677.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Aluminum Conductor size 1/0 AWG Stranded Compressed, 2/0 AWG Solid Compact

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 25/28kV Loadbreak Elbow Switching.
Standard	IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47
Conductor Range	1/0 Stranded Compressed, 2/0 Solid Compact
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C

IGCC	4586 Electrical connector assembly
Type	Loadbreak Fused Elbow Connector with Test Point
Application	Protect Light Duty Underground Distribution Systems
Size	Length 21.12 inches from bottom to center of Bushing
Material	EPDM Rubber
Voltage Rating	15.5/16.2kV
Insulation	Yes, EPDM Rubber
Consist Of	Elbow Connector Housing, Crimp Connector, Probe Lug, Tube of Lubricatn, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide
